How to add a custom column in customer grid in Magento 2


In the last post, we have seen how to create customer attribute programmatically in Magento2. That attribute will be directly available to the customer grid. You can able to filter out the data for that specific attribute. But sometimes we want to show the data in the customer grid from another custom table. In that situation, we have to add a custom column in the customer grid.

In this post, we are going to create one custom module which will use ui_component to add a custom column in the customer grid. This custom column will render data from a custom database table using JOIN. We will highlight only the important file, not the whole module.

Getting Started: Development

Step 1: Create module.xml file under app/code/Codextblog/Customercolumn/etc directory and registration.php file under app/code/Codextblog/Customercolumn directory.

Step 2: Create customer_listing.xml file under app/code/Codextblog/Customercolumn/view/adminhtml/ui_component directory with below code

<?xml version="1.0" encoding="UTF-8"?>
<listing xmlns:xsi="" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_Ui:etc/ui_configuration.xsd">
    <columns name="customer_columns">
		<column name="pan_number" class="Codextblog\Customercolumn\Ui\Component\Listing\Column\Pancolumn">
			<argument name="data" xsi:type="array">
				<item name="config" xsi:type="array">
					<item name="filter" xsi:type="string">text</item>
					<item name="label" translate="true" xsi:type="string">Pan Number</item>

Step 3: Create Pancolumn.php ui component class file under app/code/Codextblog/Customercolumn/Ui/Component/Listing/Column directory with below code

namespace Codextblog\Customercolumn\Ui\Component\Listing\Column;

use Codextblog\Customercolumn\Model\PannumberFactory;
use Magento\Framework\Api\SearchCriteriaBuilder;
use Magento\Framework\View\Element\UiComponent\ContextInterface;
use Magento\Framework\View\Element\UiComponentFactory;
use Magento\Customer\Api\CustomerRepositoryInterface;
use Magento\Ui\Component\Listing\Columns\Column;

class Pancolumn extends Column
    protected $_customerRepository;
    protected $_searchCriteria;
    protected $_pannumberfactory;

    public function __construct(
        ContextInterface $context,
        UiComponentFactory $uiComponentFactory,
        CustomerRepositoryInterface $customerRepository,
        SearchCriteriaBuilder $criteria,
        PannumberFactory $pannumberFactory,
        array $components = [],
        array $data = []
    ) {
        $this->_customerRepository = $customerRepository;
        $this->_searchCriteria  = $criteria;
        $this->_pannumberfactory = $pannumberFactory;
        parent::__construct($context, $uiComponentFactory, $components, $data);

    public function prepareDataSource(array $dataSource)
        if (isset($dataSource['data']['items'])) {
            foreach ($dataSource['data']['items'] as & $item) {
                $customer  = $this->_customerRepository->getById($item["entity_id"]);

                $customer_id = $customer->getId();

                $collection = $this->_pannumberfactory->create()->getCollection();
                $collection->addFieldToFilter('customer_id', $customer_id);

                $data = $collection->getFirstItem();

                $item[$this->getData('name')] = $data->getPanNumber();
        return $dataSource;

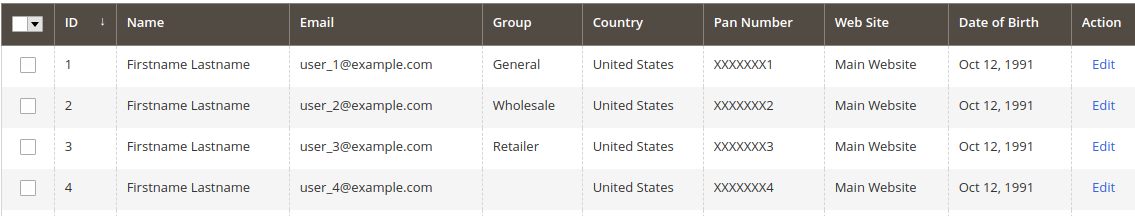

After following above steps you will get your custom column added in the customer grid.


Now if you filter the text in your custom column it will not work. To make it work we need to create a plugin which will filter the custom column using JOIN between ‘customer_grid_flat’ and custom database table ‘codextblog_customercolumn_pannumber’.

Step 4: Create di.xml file under app/code/Codextblog/Customercolumn/etc/adminhtml directory with below code.

<config xmlns:xsi=""
    <type name="Magento\Framework\View\Element\UiComponent\DataProvider\Reporting">
        <plugin name="customer_grid_collection" type="\Codextblog\Customercolumn\Model\Plugin\ResourceModel\Customer\Grid"/>

Step 5: Create plugin model file Grid.php under app/code/Codextblog/Customercolumn/Model/Plugin/ResourceModel/Customer directory with below code.

namespace Codextblog\Customercolumn\Model\Plugin\ResourceModel\Customer;

class Grid
    public static $table = 'customer_grid_flat';
    public static $leftJoinTable = 'codextblog_customercolumn_pannumber';

    public function afterSearch($intercepter, $collection)
        if ($collection->getMainTable() === $collection->getConnection()->getTableName(self::$table)) {
            $leftJoinTableName = $collection->getConnection()->getTableName(self::$leftJoinTable);

                    "co.customer_id = main_table.entity_id",
                        'pan_number' => 'co.pan_number'

            $where = $collection->getSelect()->getPart(\Magento\Framework\DB\Select::WHERE);
            $collection->getSelect()->setPart(\Magento\Framework\DB\Select::WHERE, $where)->group('main_table.entity_id');
        return $collection;

We have left joined two tables on ‘customer_grid_flat’ table ‘entity_id’ and ‘codextblog_customercolumn_pannumber’ table ‘customer_id’. Once we applied this code our filter is started working.



If this post helps you, then please like us on Facebook and follow us on Twitter.

Want to ask a question or leave a comment?

Leave a Comment


  • shashank shirodkar

    Hey Chirag,

    Can you explain to me where you created the codextblog_customercolumn_pannumber table, and what kind of data is exists in that table?
    Your answer will be very helpful for me in my project.


    • Chirag

      codextblog_customercolumn_pannumber table is created from another module. This table contains customer_id and pan_number fields.

  • komal

    how to create model/PannumberFactory

  • hafiz

    Can we show this “Pan Number” in customer edit form and update?

    • Chirag

      Yes you can add using data provider and by adding field in form

  • Shaikh Ali


    Can you just create a small module which shows SKU in order Grid

    Thank You
